System Design Concepts¶

System design encompasses the fundamental concepts and patterns used to build scalable, reliable, and maintainable distributed systems. These concepts are essential for architects designing large-scale applications.

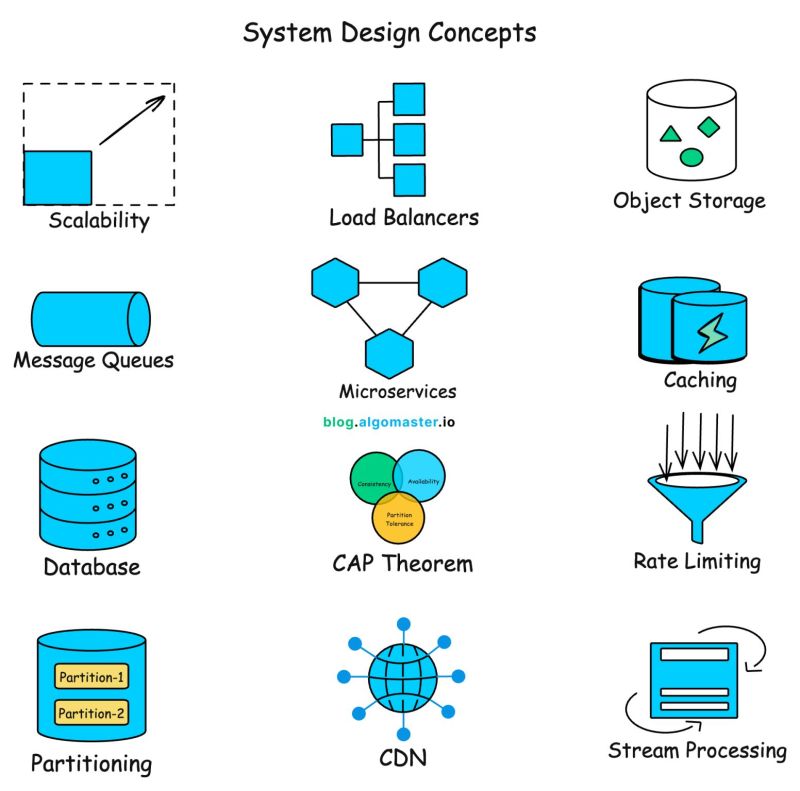

System Design Concepts

Core Concepts Explained¶

1. Scalability

The ability of a system to handle increased load by adding resources.

Vertical Scaling (Scale Up): Adding more power (CPU, RAM) to existing machines
Horizontal Scaling (Scale Out): Adding more machines to the pool
Key Metrics: Requests per second, concurrent users, data volume

Vertical:   [Small Server] → [Large Server]
Horizontal: [Server] → [Server] + [Server] + [Server]

2. Load Balancers

Distribute incoming traffic across multiple servers to ensure no single server is overwhelmed.

Algorithms: Round Robin, Least Connections, IP Hash, Weighted
Types: Layer 4 (Transport) vs Layer 7 (Application)
Examples: NGINX, HAProxy, AWS ALB/NLB

3. Object Storage

Scalable storage for unstructured data like images, videos, and backups.

Characteristics: Flat namespace, metadata-rich, highly durable
Use Cases: Static assets, backups, data lakes
Examples: AWS S3, Google Cloud Storage, Azure Blob

4. Message Queues

Asynchronous communication mechanism that decouples producers from consumers.

Benefits: Decoupling, buffering, load leveling
Patterns: Point-to-point, Publish-Subscribe
Examples: RabbitMQ, Amazon SQS, Apache Kafka

5. Microservices

Architectural style where applications are composed of small, independent services.

Principles: Single responsibility, loose coupling, independent deployment
Communication: REST, gRPC, message queues
Challenges: Distributed tracing, data consistency, service discovery

6. Caching

Storing frequently accessed data in fast storage to reduce latency and database load.

Levels: Browser, CDN, Application, Database
Strategies: Cache-aside, Write-through, Write-behind
Invalidation: TTL, Event-based, Manual
Examples: Redis, Memcached, Varnish

7. Database

Persistent storage systems optimized for different data models and access patterns.

Type	Examples	Best For
Relational	PostgreSQL, MySQL	Structured data, ACID transactions
Document	MongoDB, CouchDB	Flexible schemas, JSON data
Key-Value	Redis, DynamoDB	Simple lookups, caching
Wide-Column	Cassandra, HBase	Time-series, write-heavy workloads
Graph	Neo4j, Neptune	Relationships, social networks

8. CAP Theorem

States that a distributed system can only guarantee two of three properties simultaneously:

Consistency (C): All nodes see the same data at the same time
Availability (A): Every request receives a response
Partition Tolerance (P): System continues despite network failures

System Type	Guarantees	Examples
CP	Consistency + Partition Tolerance	MongoDB, HBase
AP	Availability + Partition Tolerance	Cassandra, DynamoDB
CA	Consistency + Availability	Traditional RDBMS (single node)

9. Rate Limiting

Controls the number of requests a client can make in a given time period.

Algorithms: Token Bucket, Leaky Bucket, Fixed Window, Sliding Window
Purpose: Prevent abuse, ensure fair usage, protect resources
Implementation: API Gateway, Application middleware

10. Partitioning (Sharding)

Dividing data across multiple databases to improve performance and scalability.

Horizontal Partitioning: Rows distributed across shards
Vertical Partitioning: Columns split into different tables
Strategies: Range-based, Hash-based, Directory-based

11. CDN (Content Delivery Network)

Geographically distributed servers that cache content closer to users.

Benefits: Reduced latency, decreased origin load, DDoS protection
Content Types: Static assets, streaming media, API responses
Examples: Cloudflare, Akamai, AWS CloudFront

12. Stream Processing

Real-time processing of continuous data streams.

Use Cases: Real-time analytics, fraud detection, IoT data
Patterns: Event sourcing, CQRS
Examples: Apache Kafka Streams, Apache Flink, AWS Kinesis

Putting It All Together¶

When designing a system, these concepts work together:

flowchart TB
    Users[Users] --> CDN[CDN]
    CDN --> LB[Load Balancer]
    LB --> API[API Gateway]
    API --> RL[Rate Limiter]
    RL --> MS1[Microservice 1]
    RL --> MS2[Microservice 2]
    MS1 --> Cache[Cache Layer]
    MS2 --> Cache
    Cache --> DB[(Database)]
    MS1 --> MQ[Message Queue]
    MQ --> MS2
    DB --> Shard1[(Shard 1)]
    DB --> Shard2[(Shard 2)]

    style CDN fill:#90EE90
    style LB fill:#FFD700
    style Cache fill:#ADD8E6
    style MQ fill:#FFB6C1

System-Level Architecture Patterns¶

System-level architecture patterns define how entire systems, services, and components are organized and communicate with each other. These patterns address concerns like scalability, reliability, maintainability, and distributed system challenges.

1. Event-Driven Architecture¶

Overview: Components communicate through events rather than direct calls. Events represent something that happened in the system.

flowchart LR
    ServiceA[Service A] -->|publishes event| EventBus[Event Bus]
    EventBus -->|delivers event| ServiceB[Service B]
    EventBus -->|delivers event| ServiceC[Service C]
    EventBus -->|delivers event| ServiceD[Service D]

    style EventBus fill:#FFD700
    style ServiceA fill:#90EE90
    style ServiceB fill:#ADD8E6
    style ServiceC fill:#ADD8E6
    style ServiceD fill:#ADD8E6

Key Components: - Event Producers: Generate and publish events - Event Consumers: Subscribe to and process events - Event Bus/Broker: Routes events between producers and consumers - Event Store: Optionally persists events for replay

When to Use: - Real-time systems requiring immediate responses - Microservices that need loose coupling - Systems with complex workflows - Applications requiring audit trails

Pros: - Loose coupling between components - High scalability and responsiveness - Easy to add new consumers - Natural audit trail

Cons: - Complex debugging (async flow) - Event ordering challenges - Potential for event storms

2. Microservices Architecture¶

Overview: Application is decomposed into small, independent services that communicate over well-defined APIs.

flowchart TB
    Client[Client Application] --> Gateway[API Gateway]
    Gateway --> UserService[User Service]
    Gateway --> OrderService[Order Service]
    Gateway --> PaymentService[Payment Service]
    Gateway --> NotificationService[Notification Service]

    UserService --> UserDB[(User DB)]
    OrderService --> OrderDB[(Order DB)]
    PaymentService --> PaymentDB[(Payment DB)]
    NotificationService --> MessageQueue[Message Queue]

    style Gateway fill:#FFD700
    style UserService fill:#90EE90
    style OrderService fill:#ADD8E6
    style PaymentService fill:#FFB6C1
    style NotificationService fill:#DDA0DD

Key Characteristics: - Single Responsibility: Each service owns a specific business capability - Decentralized: Independent deployment and scaling - Technology Agnostic: Services can use different tech stacks - Fault Tolerant: Failure in one service doesn't crash the system

When to Use: - Large, complex applications - Multiple development teams - Different scaling requirements per feature - Need for rapid, independent deployments

Pros: - Independent scaling and deployment - Technology diversity - Team autonomy - Fault isolation

Cons: - Operational complexity - Network latency overhead - Data consistency challenges - Testing complexity

3. Monolithic Architecture¶

Overview: All components of an application are packaged and deployed as a single unit.

flowchart TB
    Client[Client] --> LoadBalancer[Load Balancer]
    LoadBalancer --> App1[Monolithic App Instance 1]
    LoadBalancer --> App2[Monolithic App Instance 2]
    LoadBalancer --> App3[Monolithic App Instance 3]

    App1 --> Database[(Shared Database)]
    App2 --> Database
    App3 --> Database

    subgraph "Monolithic Application"
        UI[UI Layer]
        Business[Business Layer]
        Data[Data Layer]
    end

    style LoadBalancer fill:#FFD700
    style Database fill:#ADD8E6

When to Use: - Small to medium applications - Simple business logic - Limited team size - Rapid prototyping

Pros: - Simple deployment and testing - Easy debugging - Better performance (no network calls) - Simpler development initially

Cons: - Difficult to scale specific components - Technology lock-in - Large codebase becomes unwieldy - Deployment of small changes affects entire system

4. Service-Oriented Architecture (SOA)¶

Overview: Services communicate through well-defined interfaces and protocols, typically with enterprise service bus.

flowchart TB
    Client1[Web Client] --> ESB[Enterprise Service Bus]
    Client2[Mobile Client] --> ESB
    Client3[Partner API] --> ESB

    ESB --> Service1[Customer Service]
    ESB --> Service2[Inventory Service]
    ESB --> Service3[Billing Service]
    ESB --> Service4[Reporting Service]

    Service1 --> DB1[(Customer DB)]
    Service2 --> DB2[(Inventory DB)]
    Service3 --> DB3[(Billing DB)]
    Service4 --> DataWarehouse[(Data Warehouse)]

    style ESB fill:#FFD700
    style Service1 fill:#90EE90
    style Service2 fill:#ADD8E6
    style Service3 fill:#FFB6C1
    style Service4 fill:#DDA0DD

Key Principles: - Service Contracts: Well-defined interfaces - Service Autonomy: Services control their own logic - Service Reusability: Services can be reused across applications - Service Composability: Services can be combined to create new functionality

When to Use: - Enterprise environments - Legacy system integration - Need for service reuse across multiple applications - Governance and compliance requirements

5. Client-Server Architecture¶

Overview: Clients request services from servers, which process requests and return responses.

flowchart LR
    Client1[Web Browser] --> Server[Web Server]
    Client2[Mobile App] --> Server
    Client3[Desktop App] --> Server

    Server --> AppServer[Application Server]
    AppServer --> Database[(Database)]
    AppServer --> FileSystem[File System]

    style Server fill:#FFD700
    style AppServer fill:#90EE90
    style Database fill:#ADD8E6

Variants: - 2-Tier: Client directly communicates with database - 3-Tier: Client → Application Server → Database - N-Tier: Multiple intermediate layers

When to Use: - Traditional web applications - Database-driven applications - Need for centralized data management

6. Peer-to-Peer (P2P) Architecture¶

Overview: Nodes act as both clients and servers, sharing resources directly with each other.

flowchart LR
    Peer1[Peer 1] <--> Peer2[Peer 2]
    Peer2 <--> Peer3[Peer 3]
    Peer3 <--> Peer4[Peer 4]
    Peer4 <--> Peer1
    Peer1 <--> Peer3
    Peer2 <--> Peer4

    style Peer1 fill:#90EE90
    style Peer2 fill:#ADD8E6
    style Peer3 fill:#FFB6C1
    style Peer4 fill:#DDA0DD

When to Use: - File sharing systems - Blockchain networks - Distributed computing - Systems requiring high availability without central points of failure

Pros: - No single point of failure - Highly scalable - Cost-effective (no central infrastructure)

Cons: - Security challenges - Difficult to maintain consistency - Network complexity

7. Pipe and Filter Architecture¶

Overview: Data flows through a series of processing stages (filters) connected by pipes.

flowchart LR
    Input[Raw Data] --> Filter1[Parse Data]
    Filter1 --> Filter2[Validate Data]
    Filter2 --> Filter3[Transform Data]
    Filter3 --> Filter4[Enrich Data]
    Filter4 --> Output[Processed Data]

    style Input fill:#FFD700
    style Filter1 fill:#90EE90
    style Filter2 fill:#ADD8E6
    style Filter3 fill:#FFB6C1
    style Filter4 fill:#DDA0DD
    style Output fill:#98FB98

When to Use: - Data processing pipelines - Stream processing - Batch processing systems - ETL (Extract, Transform, Load) operations

Pros: - Easy to understand and modify - Reusable filters - Parallel processing possible - Good for batch processing

Cons: - Not suitable for interactive systems - Overhead of data transformation between filters

8. Serverless Architecture¶

Overview: Application logic runs in stateless compute containers managed by cloud providers.

flowchart TB
    Client[Client] --> Gateway[API Gateway]
    Gateway --> Function1[Lambda Function 1]
    Gateway --> Function2[Lambda Function 2]
    Gateway --> Function3[Lambda Function 3]

    Function1 --> Database[(Managed Database)]
    Function2 --> Storage[Object Storage]
    Function3 --> Queue[Message Queue]

    Event[Event Source] --> Function1
    Schedule[Scheduled Event] --> Function2

    style Gateway fill:#FFD700
    style Function1 fill:#90EE90
    style Function2 fill:#ADD8E6
    style Function3 fill:#FFB6C1

When to Use: - Event-driven applications - Unpredictable or sporadic traffic - Rapid prototyping - Cost optimization for low-traffic applications

Pros: - No server management - Automatic scaling - Pay-per-use pricing - Fast deployment

Cons: - Vendor lock-in - Cold start latency - Limited execution time - Debugging challenges

9. Architecture Pattern Comparison¶

Pattern	Scalability	Complexity	Cost	Best For
Monolithic	Limited	Low	Low	Small apps, prototypes
Microservices	High	High	High	Large, complex systems
SOA	Medium	Medium	Medium	Enterprise integration
Event-Driven	High	Medium	Medium	Real-time systems
Client-Server	Medium	Low	Low	Traditional web apps
P2P	High	High	Low	Distributed systems
Serverless	Auto	Low	Variable	Event-driven, sporadic load

Choosing the Right Pattern¶

Consider These Factors:

Team Size & Expertise
Small teams: Monolithic or Client-Server
Large teams: Microservices or SOA
System Complexity
Simple: Monolithic
Complex: Microservices or Event-Driven
Scalability Requirements
Low: Monolithic
High: Microservices, Event-Driven, or Serverless
Performance Requirements
Low latency: Monolithic
High throughput: Event-Driven or Microservices
Budget Constraints
Limited: Monolithic or Serverless
High: Microservices or SOA

Application-level UI Patterns¶

What distinguishes MVC, MVP, MVVM, MVVM-C, and VIPER architecture patterns from each other?

These architecture patterns are among the most commonly used in app development, whether on iOS or Android platforms. Developers have introduced them to overcome the limitations of earlier patterns. So, how do they differ?

MVC, the oldest pattern, dates back almost 50 years
Every pattern has a "view" (V) responsible for displaying content and receiving user input
Most patterns include a "model" (M) to manage business data
"Controller," "presenter," and "view-model" are translators that mediate between the view and the model ("entity" in the VIPER pattern)
These translators can be quite complex to write, so various patterns have been proposed to make them more maintainable

1. MVC (Model View Controller)¶

The Model-View-Controller pattern separates an application into three interconnected components.

flowchart LR
    User([User]) --> View[View]
    View -->|notify| Controller[Controller]
    Controller -->|update| Model[Model]
    Model -->|get data| View

    style View fill:#90EE90
    style Controller fill:#FFB6C1
    style Model fill:#ADD8E6

Components: - Model: Manages data and business logic - View: Handles the user interface and presentation - Controller: Mediates between Model and View, handles user input

2. MVP (Model View Presenter)¶

The Model-View-Presenter pattern is similar to MVC but with a different flow of communication.

flowchart LR
    User([User]) --> View[View]
    View -->|notify| Presenter[Presenter]
    Presenter -->|update| View
    Presenter -->|update| Model[Model]
    Model -->|get data| Presenter

    style View fill:#90EE90
    style Presenter fill:#FFFF99
    style Model fill:#ADD8E6

Components: - Model: Manages data and business logic - View: Handles the user interface (passive) - Presenter: Contains presentation logic, mediates between View and Model

3. MVVM (Model View View-Model)¶

The Model-View-ViewModel pattern uses data binding to connect the View and ViewModel.

flowchart LR
    User([User]) --> View[View]
    View -->|Data binding| ViewModel[View Model]
    ViewModel -.->|Notify| View
    ViewModel -->|update| Model[Model]
    Model -.->|Notify| ViewModel

    style View fill:#90EE90
    style ViewModel fill:#FFFF99
    style Model fill:#ADD8E6

Components: - Model: Manages data and business logic - View: Handles the user interface with data binding - ViewModel: Exposes data and commands for the View, handles presentation logic

4. MVVM-C (Model View View-Model Coordinator)¶

MVVM-C extends MVVM by adding a Coordinator to handle navigation and flow control.

flowchart TB
    Coordinator[Coordinator] -->|control| MVVM

    subgraph MVVM ["MVVM Flow"]
        User([User]) --> View[View]
        View -->|Data binding| ViewModel[View Model]
        ViewModel -.->|Notify| View
        ViewModel -->|update| Model[Model]
        Model -.->|Notify| ViewModel
    end

    style View fill:#90EE90
    style ViewModel fill:#FFFF99
    style Model fill:#ADD8E6
    style Coordinator fill:#FFB6C1

Components: - Model: Manages data and business logic - View: Handles the user interface with data binding - ViewModel: Exposes data and commands for the View - Coordinator: Manages navigation and application flow

5. VIPER (View Interactor Presenter Entity Router)¶

VIPER is a more complex pattern that separates concerns into five distinct components.

flowchart LR
    User([User]) --> View[View]
    View -->|Data binding| Presenter[Presenter]
    Presenter -.->|Notify| View
    Presenter -->|update| Interactor[Interactor]
    Interactor -.->|Notify| Presenter
    Interactor -->|manage| Entity[Entity]
    Entity -.->|notify| Interactor
    Router[Router] -->|manage| Presenter

    style View fill:#90EE90
    style Presenter fill:#FFFF99
    style Entity fill:#ADD8E6
    style Router fill:#FFB6C1
    style Interactor fill:#DDA0DD

Components: - View: Handles the user interface - Interactor: Contains business logic - Presenter: Handles presentation logic and formatting - Entity: Basic data models - Router: Handles navigation and module assembly

Pattern Comparison¶

Pattern	Complexity	Testability	Separation of Concerns	Best Use Case
MVC	Low	Medium	Good	Simple applications
MVP	Medium	High	Very Good	Applications requiring high testability
MVVM	Medium	High	Very Good	Applications with complex UI binding
MVVM-C	High	High	Excellent	Large applications with complex navigation
VIPER	Very High	Excellent	Excellent	Enterprise applications with complex business logic

Coding Project Architecture Patterns¶

Structure¶

Monorepo Structure¶

A monorepo (monolithic repository) contains multiple projects in a single repository. Benefits include:

Shared Dependencies: Easier to manage common libraries and dependencies
Atomic Changes: Changes across multiple projects can be made in a single commit
Unified Tooling: Consistent build tools, linting, and testing across all projects
Simplified Dependency Management: No version conflicts between projects

Best Practices:

Use workspace tools (Lerna, Nx, Rush, or built-in workspace support)
Establish clear project boundaries and ownership
Implement consistent coding standards and tooling
Use automated dependency graph analysis

Polyrepo Structure¶

Multiple repositories, each containing a single project or small set of related projects.

Benefits:

Independent Releases: Each project can be versioned and released separately
Clear Ownership: Specific teams own specific repositories
Reduced Repository Size: Smaller, more focused repositories
Access Control: Granular permissions per repository

Layers¶

Core Layer¶

Base abstractions, interfaces, and protocols.

Contents:

Domain models and entities
Business logic interfaces
Data access abstractions
Common utilities and helpers
Configuration interfaces
Event definitions and contracts

Characteristics:

No external dependencies
Framework-agnostic
Highly testable
Contains business rules and domain logic

Implementation Layer¶

Concrete implementations and high-level public utilities.

Contents:

Service implementations
Repository implementations
Data transfer objects (DTOs)
Utility classes and functions
Business logic implementations
Event handlers and processors

Characteristics:

Depends on core layer only
Contains framework-specific code
Implements interfaces defined in core
Orchestrates business workflows

Integration Layer¶

Third-party service integrations.

Contents:

External API clients
Database implementations
Message queue integrations
Cloud service connectors
Third-party library wrappers
Infrastructure adapters

Characteristics:

Isolates external dependencies
Provides consistent interfaces to external services
Handles authentication and authorization
Manages connection pooling and retries

Testing Layer¶

Test implementations and testing utilities.

Contents:

Unit tests for all layers
Integration tests
End-to-end tests
Test doubles and mocks
Test utilities and fixtures
Performance and load tests

Testing Pyramid:

Unit Tests: Fast, isolated, test single components
Integration Tests: Test interactions between components
End-to-End Tests: Test complete user workflows
Contract Tests: Verify API compatibility between services

Best Practices: - Maintain high test coverage for core business logic - Use test doubles for external dependencies - Implement test automation and CI/CD integration - Separate test data from test logic
